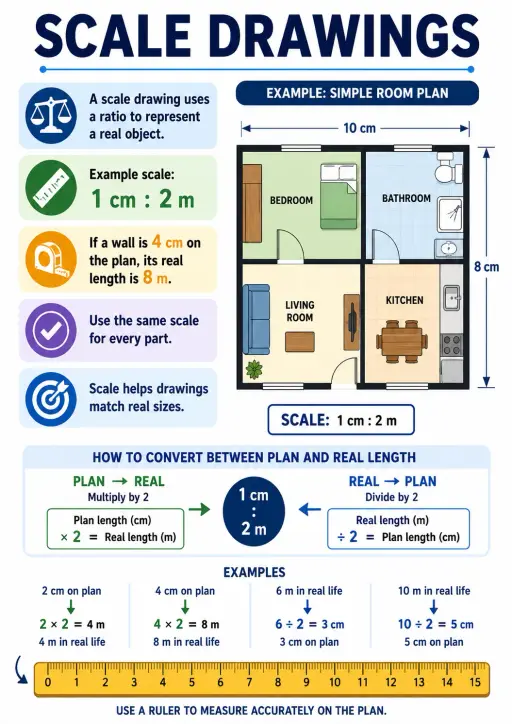

Scale Drawings Ratios Infographic
This Scale Drawings infographic for Ratios focuses on A scale drawing uses a ratio to represent a real object., Example scale:, 1 cm : 2 m, If a wall is 4 cm on the plan, its real length is 8 m. and Use the same scale for every part.. The image uses short OCR-extracted labels and reference text from the poster itself, making it ready for classroom display, quick review, learning centers, and independent student study.
